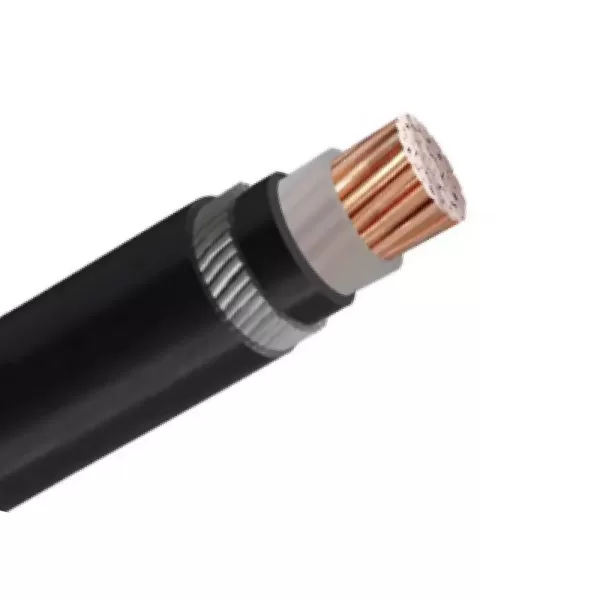

CU / XLPE Insulated Cable / PVC Sheathed Armoured Cable Single Core
| Construction | |
| Conductor: | Plain circular, compacted or shaped stranded copper or aluminium conductor, conform to IEC 60228 class 2. |
| Insulation: | XLPE (cross-linked polyethylene) rated at 90°C. |
| Colour of core: | natural (black on request) / natural (brown or blue on request) |
| Armour: | Aluminium wire shall be applied over the PVC bedding. |
| Sheath: | PVC type ST2 to IEC 60502 colour black. |
| Standard: | IEC 60502-1, MS 2105 |
| Voltage: | 0.6/1 (1.2) kV |
Application
These cables are most suitable for underground burial where there is a risk of mechanical damage.
