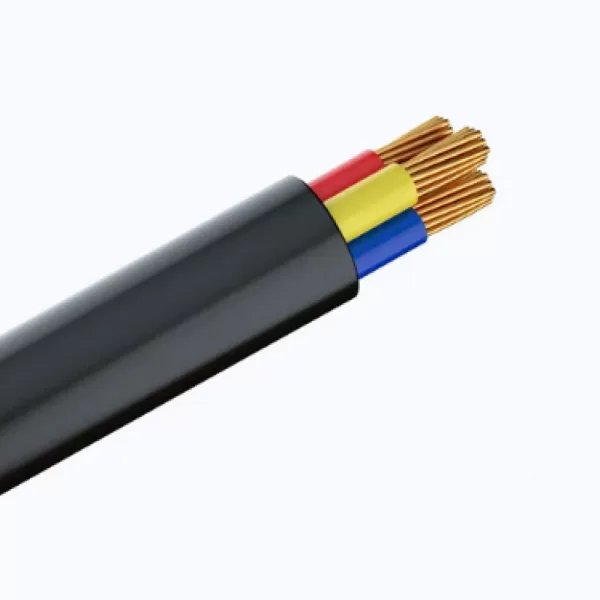

CU / PVC Insulated Cable / PVC Sheathed Unarmoured Cable Multicore
| Construction | |
| Conductor: | Plain annealed copper |
| Insulation: | PVC Compound |
| Colour of cores: | 2 cores - red and black / brown and blue 3 cores - red, yellow and blue / brown, black and grey 4 cores - red, yellow, blue and black / brown, black, grey and blue |
| Formation: | 2, 3 or 4 cores (to 35mm2) stranded together and the interstices may be filled with non-hygroscopic material or the sheathing compound. A non-hygroscopic binder tape may be applied over the laid-up cores. |
| Sheath: | RoHS PVC Compound (Black) |
| Standard: | BS 6004, MS 2112-4 / BS 6346, MS 2102 |
| Voltage: | 300/500V or 0.6/1 (1.2) kV |
